Rev 0.2.2 · 2026-10-28。完成圖內已填入數值；以下保留來源與判讀限制。
| 欄位 | 採用值 | 判讀依據 | 清晰度／證據強度 |
|---|---|---|---|

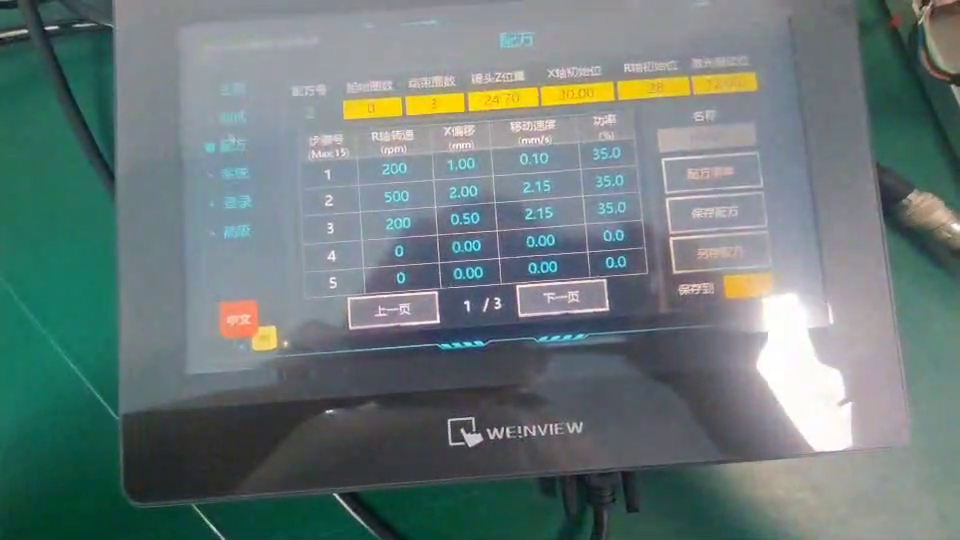

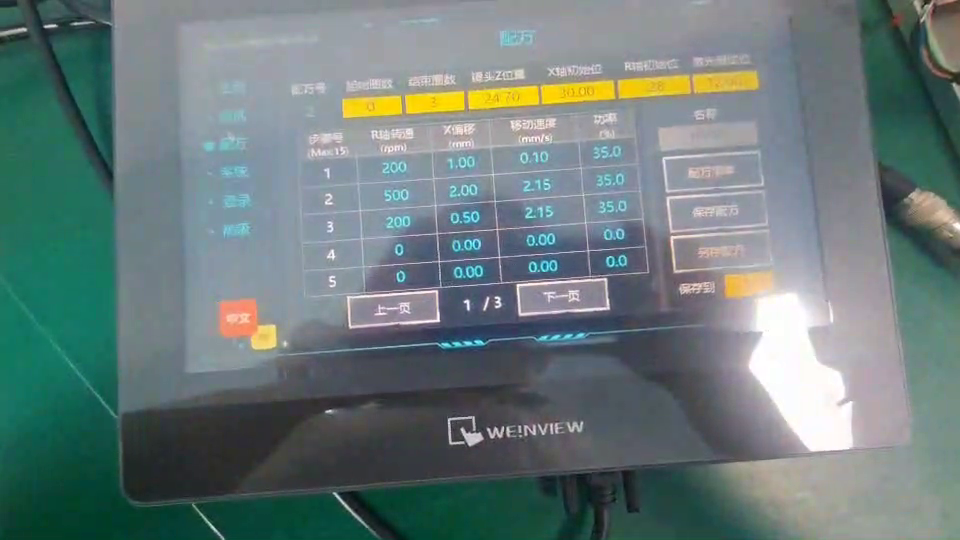

| R 軸初始位 | 28 | S10 and S11: stable post-refresh video frames. | high visual confidence |

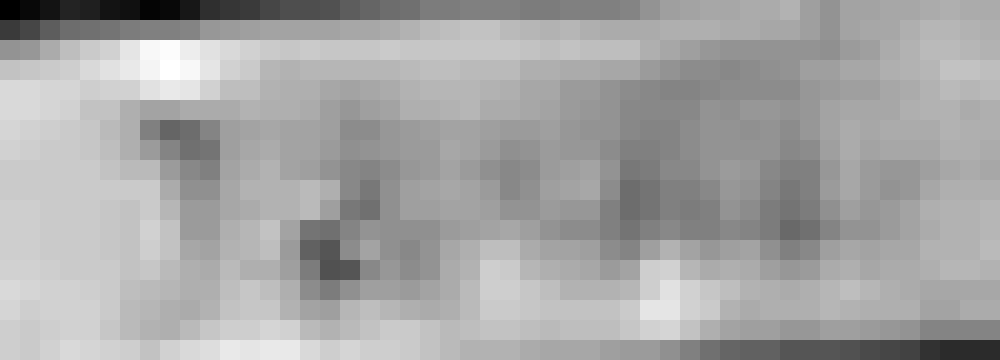

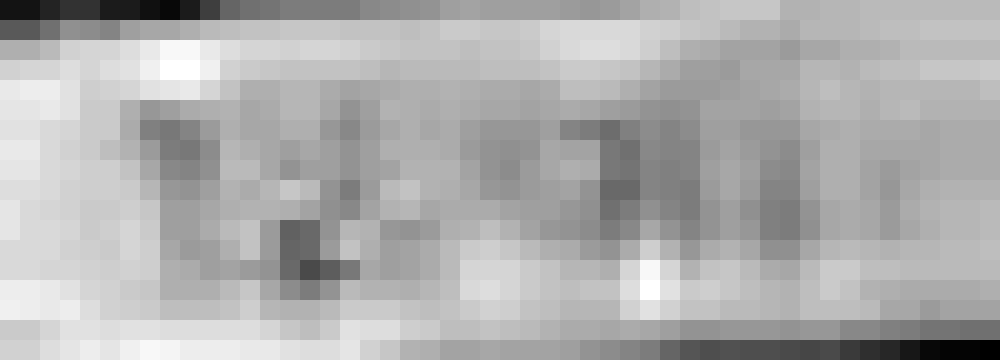

| 雷射測試位 | 12.00 | Adjacent terminal frames at 106.083–106.333 s; native pixels, nearest-neighbour enlargement and green-channel contrast inspection. Adopted visual transcription; lower legibility than the other two fields. | moderate visual confidence; not corroborated by an HMI project export |

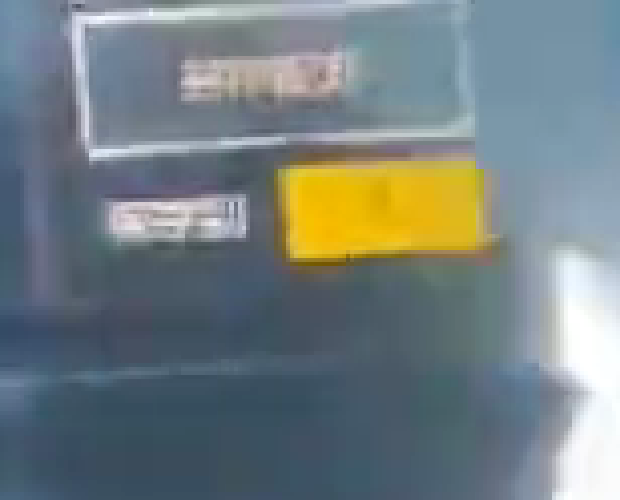

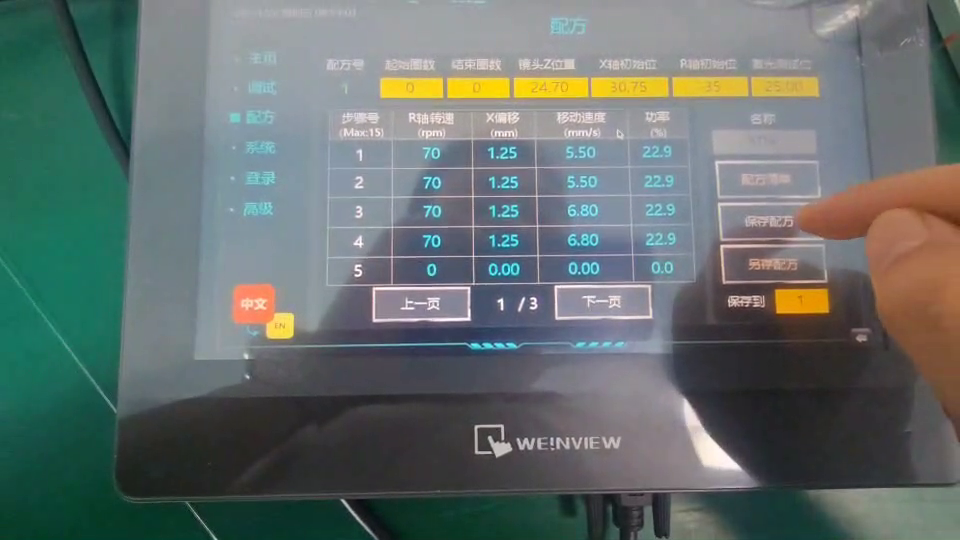

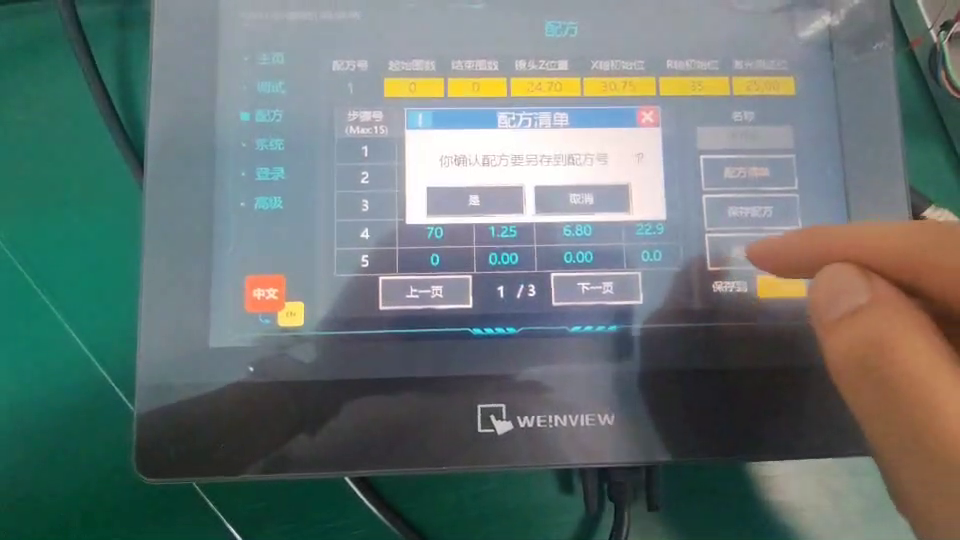

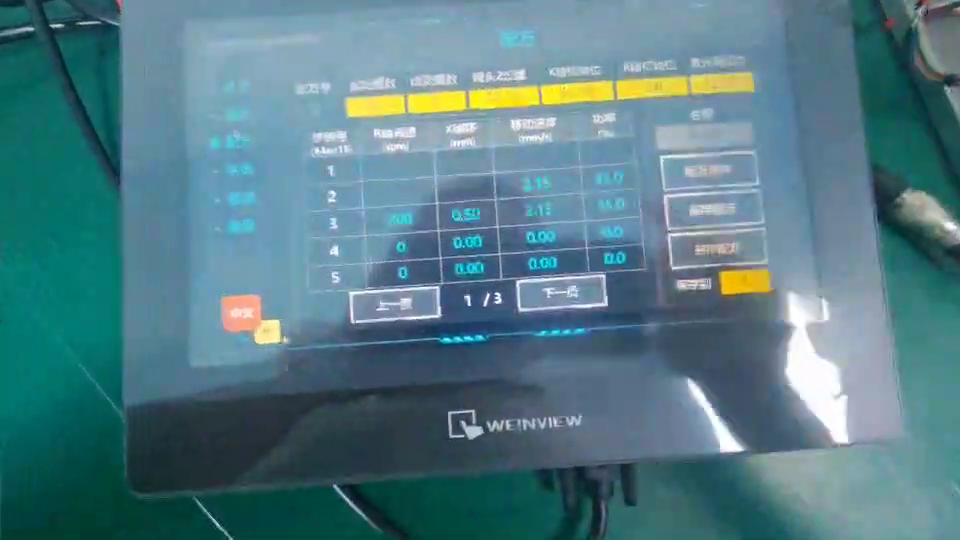

| 儲存到 | 1 | S07 and S08 explicitly show target 1; S09 still shows 1 after recipe 2 was loaded. Active recipe number and save destination are separate fields. | high confidence from cross-frame and operation-sequence evidence |
雷射測試位 12.00 是低解析度影片的人工判讀，清晰度低於另兩欄；並非從 HMI 工程檔或設備匯出取得。保存到 1 與目前配方號 2 是不同欄位。此圖用於手冊示意，不是製程設定建議。
先排除 104.75–105.9 秒頁面載入時的空白、過渡讀值，再比對末段連續影格。所有時間為要求的 seek 時間，容許約一個影格偏差。來源為先前驗證與 G 槽原檔相同的本機影片複本，本輪重新比對雜湊一致。
